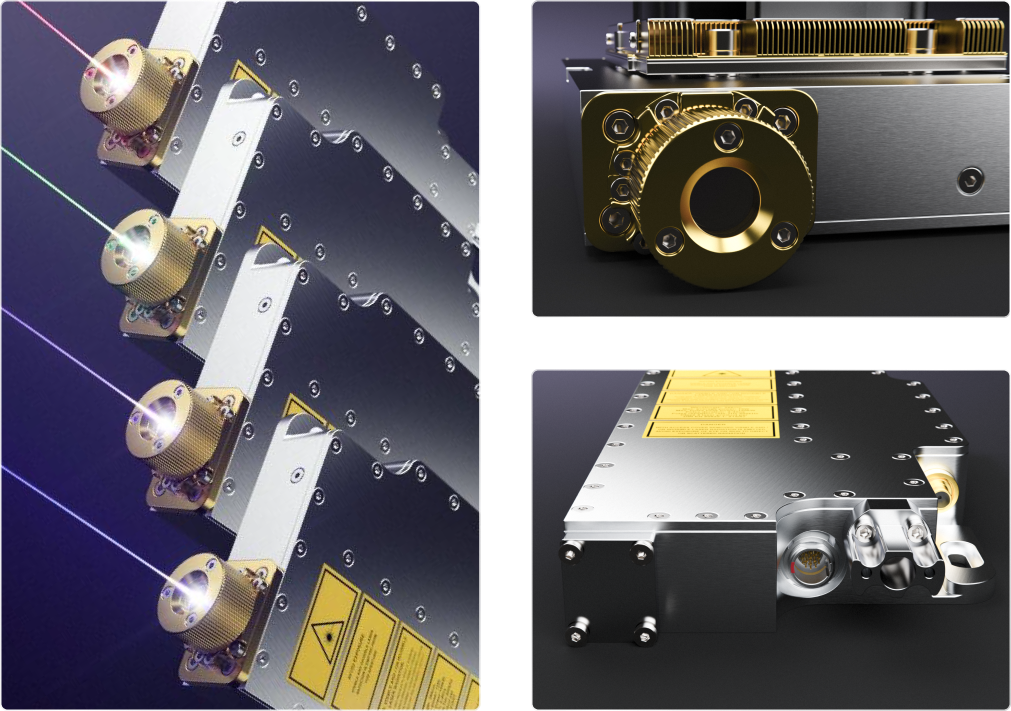

The most compact high-power laser

We are producing the world’s most compact high-power lasers for material processing. Our lasers can be used independently or integrated as beam sources, even in extremely small environments, such as fragile robotic systems. They are designed for stationary and battery-powered use.


We offer short-pulsed diode-pumped solid-state (DPSS) lasers ranging from Infrared to Green to UV to Deep-UV – enabling a wide range of applications in marking, micro-drilling, micro-cutting, and surface processing for industrial and retail customers.

Unmatched in the sum of its properties

Ultra-Compact

With a size of 200 mm x 110 mm x 33 mm, our beam source is ultra-compact. It can hence be integrated into existing systems, even in fragile robotic systems. Optional battery operation and ultra-compact air cooling allow 100% mobility.

High-Power & High-Precision

Short nano-pulses and a high pulse peak power of up to 700 kilowatts combined with a superior beam quality of M² < 1.2, make our beam source the most powerful and precise in its size class. With our advanced technology we minimize the heat-affected zone, allowing the processing of materials that otherwise require pico- or femtosecond lasers, e.g., cutting of stainless steel without carbonization.

Economical

Due to intelligent, integrated product development, we can offer a competitive price below market standard. The sustainable design of our beam source further enables low energy consumption, high efficiency, and reduced maintenance, resulting in low life cycle costs and a long product lifespan. Even in UV and Deep-UV.

Multi-Wavelength

Available in the wavelengths Infrared (1064 nm), Green (532 nm), UV (355 nm), and Deep-UV (266 nm), our beam source is an extremely versatile solution. It can mark, structure, engrave, drill, and cut any common micro-material - ranging from metal over plastic to diamond. Due to the range of wavelengths and applications, our laser can replace several conventional lasers.

Product specifications

Q_266 series
  • Wavelength 266nm
  • Pulse Energy up to 10W / 200μJ
  • Max. Pulse Peak Power 40kW
  • Repetition Rate 1Hz - 500kHz
  • Pulse Width < 5ns (@100kHz)
  • < 1.3
  • Solely Air Cooled yes
  • Water Cooling (opt.) yes
Q_355 series
  • Wavelength 355nm
  • Pulse Energy up to 20W / 500μJ
  • Max. Pulse Peak Power 100kW
  • Repetition Rate 1Hz - 500kHz
  • Pulse Width < 5ns (@10kHz)
  • < 1.2
  • Solely Air Cooled yes
  • Water Cooling (opt.) yes
Q_532 series
  • Wavelength 532nm
  • Pulse Energy up to 35W / 2mJ
  • Max. Pulse Peak Power 300kW
  • Repetition Rate 1Hz - 500kHz
  • Pulse Width < 6ns (@50kHz)
  • < 1.2
  • Solely Air Cooled yes
  • Water Cooling (opt.) yes
Q_1064 series
  • Wavelength 1064nm
  • Pulse Energy up to 60W / 5mJ
  • Max. Pulse Peak Power 700kW
  • Repetition Rate 1Hz - 500kHz
  • Pulse Width < 7ns (@100kHz)
  • < 1.2
  • Solely Air Cooled yes
  • Water Cooling (opt.) yes
